Core 1000

Sporting many features usually only seen in more expensive and larger cases

  • Simple yet elegant mesh front panel allowing increased airflow through the case
  • Optimized for performance in a compact, micro-ATX form factor with multiple cooling options
  • 1x USB 3.0 with internal connector, 1x USB 2.0

Variation

View specifications
Find retailer

Key features

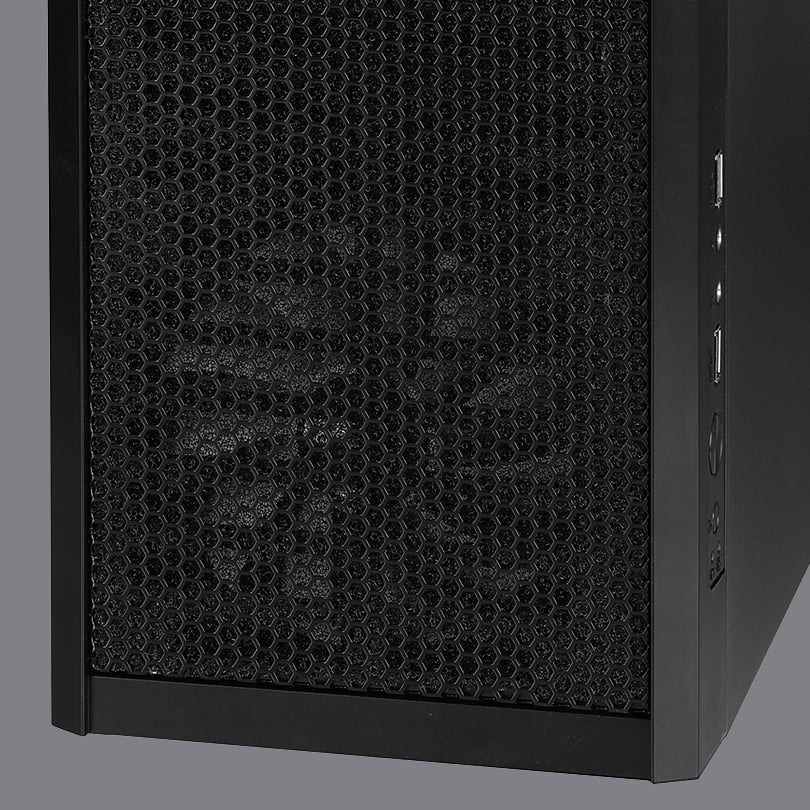

  • Simple yet elegant mesh front panel allowing for increased airflow through the case

  • Optimized for performance in a compact, micro-ATX form factor with multiple cooling options

  • 1x USB 3.0 with internal connector, 1x USB 2.0

  • One Silent Series R2 fan included: 1x 120 mm in front

  • A total of three fan slots (1x 120 mm in front, 1x 92 mm in rear, 1x 120 mm in side panel)

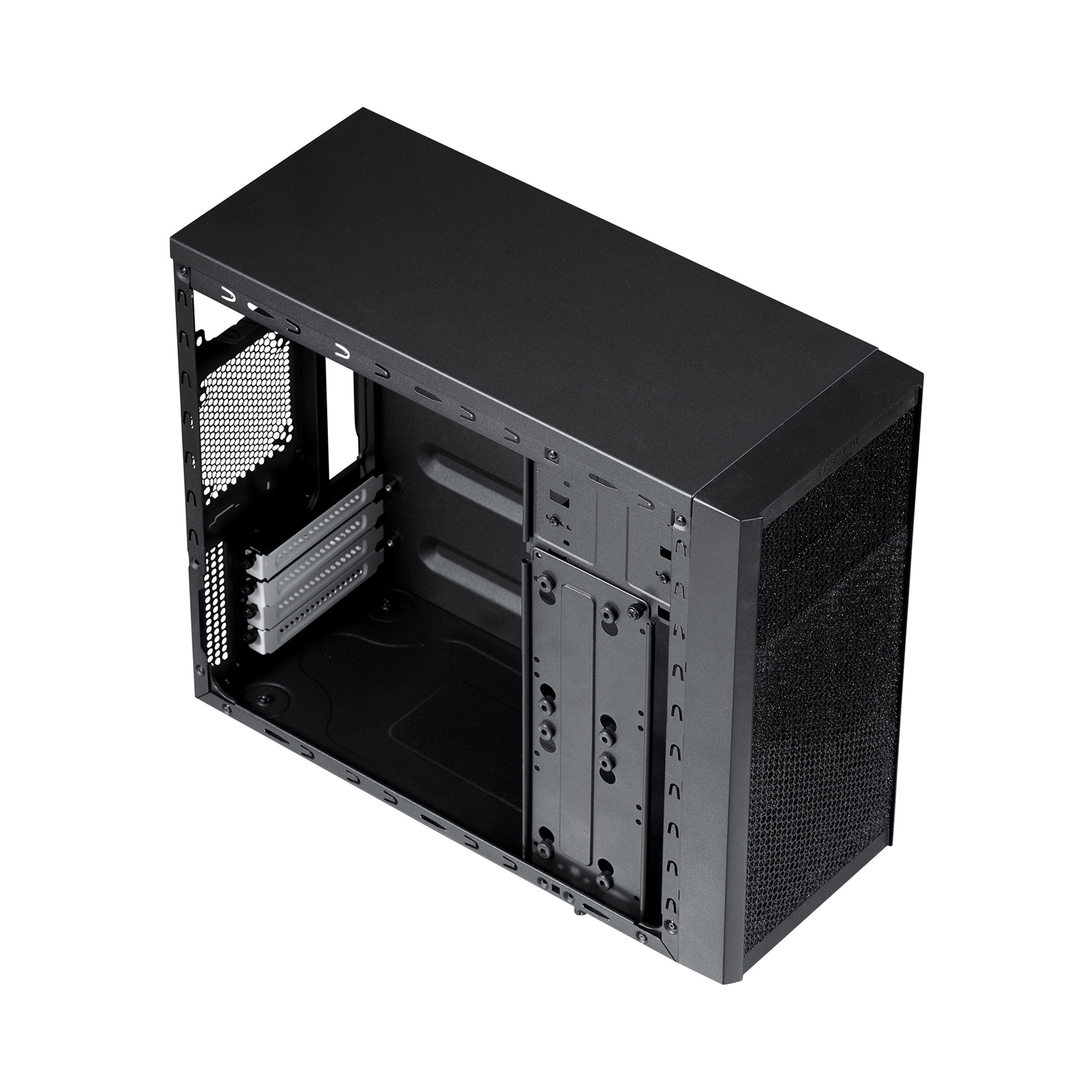

  • Innovative HDD positioning which mounts the HDD or SSDs vertically on the mounting bracket with anti-vibration silicone grommets

  • Supports long graphics cards up to 350 mm in length

  • Supports various combinations of drive sets ups: 3x 2.5" SSD, 2x 3.5" HDD or 1x 2.5" SSD + 1x 3.5" HDD

  • Dust filter for front fan position

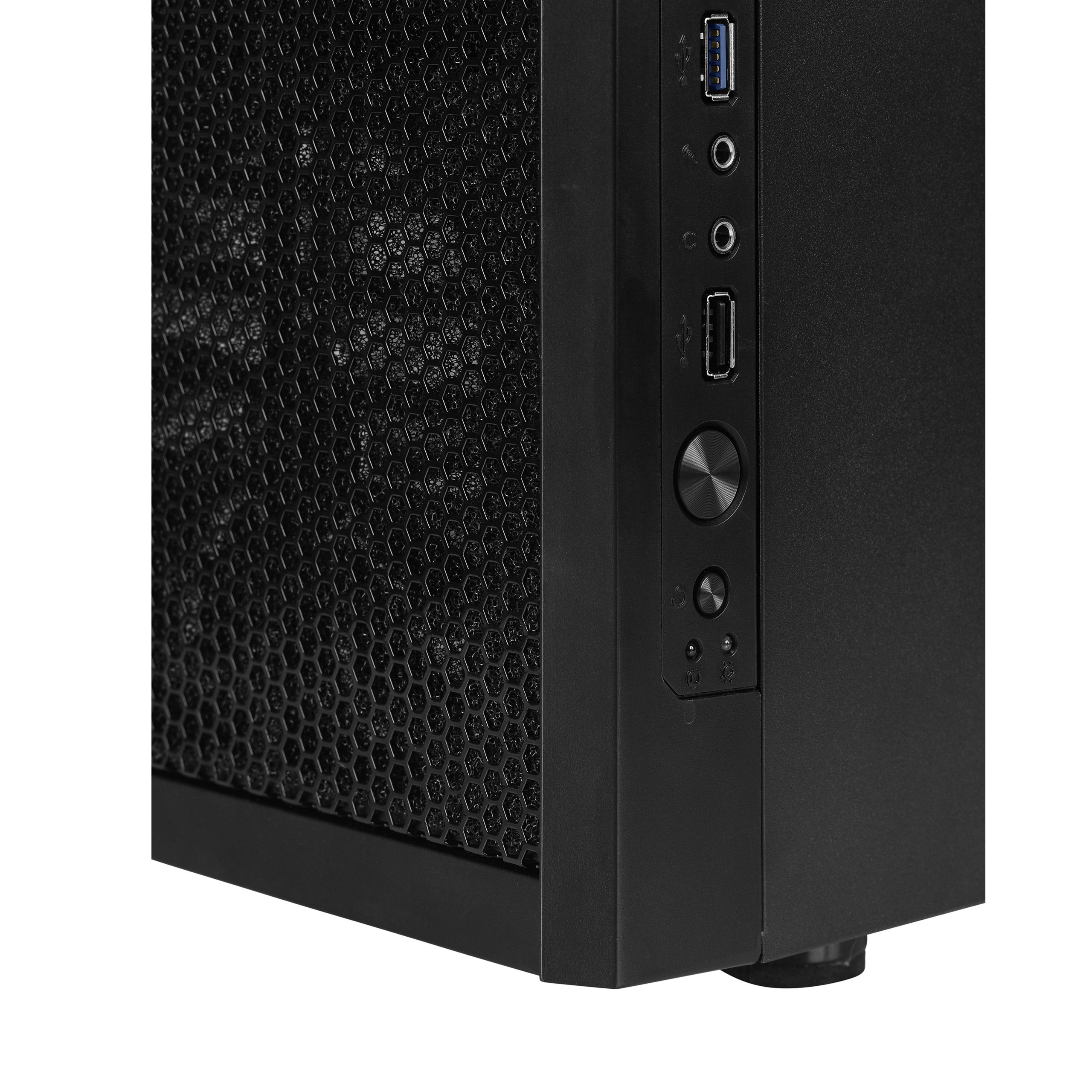

USB 3.0 I/O Panel

1x USB 3.0 with internal connector, 1x USB 2.0

1 x 120 mm Silent Fan

One Silent Series R2 fan included: 1x 120 mm in front

Smart HDD/SSD positioning

Innovative HDD positioning which mounts the HDD or SSDs vertically on the mounting bracket with anti-vibration silicone grommets

Reviews

Language Active language flag
People will not look at the CORE 1000 and think "budget" or "cheap". This is the advantage a small brand has over the large players of the market. Still, since this part of the market is the most crowded and other cases offer more functional features than the CORE 1000, if money is the only reason you are looking at a case of this price range, make sure this one satisfies your needs.
Techpowerup.com Read the full review

Specifications

  • Drive bay capacity
    2x 3.5" HDD or 3x 2.5" SSD or 1x 3.5" HDD + 1x 2.5" SSD
  • ODD slots
    2
  • FDD slot
    1, using convertor in ODD slot (convertor included)
  • Expansion slots
    4
  • Front ports
    1x USB 3.0 with internal connector, 1x USB 2.0, 1x 3.5 mm audio in (mic), 1x 3.5 mm audio out (headphone), Power button with LED, HDD LED, Reset button
  • Total fan mounts
    3
  • Front fan
    1x 120 mm (1x 120 mm Silent Series R2 included)
  • Top fan
    1x 92 mm
  • Side fan
    1x 120 mm
  • Dust filters
    Front fans

Compatibility

  • Power supply type
    ATX
  • Motherboard compatibility
    mATX, Mini ITX, DTX
  • PSU max length
    185 mm (with optical drive)
  • GPU max length
    350 mm in length with one HDD mounted, 210 mm in length with two/three HDD mounted
  • CPU cooler max height
    148 mm

Dimensions

  • Case dimensions (WxHxD)
    175 x 355 x 420 mm
  • Net weight
    4.1 kg
  • Package dimensions (WxHxD)
    225 x 415 x 475 mm
  • Package weight
    5 kg
  • Volume
    26.1 litres

Other

  • Warranty
    2 Years
  • Package contents
    Core 1000 USB 3.0 computer case, Accessory box, User manual
  • EAN
    7350041081098
  • UPC
    817301011099
  • Product code
    FD-CA-CORE-1000-USB3-BL
  • Additional information
    Available for System Integrators
